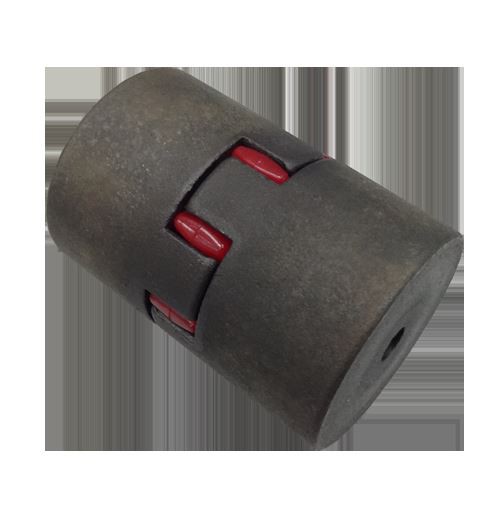

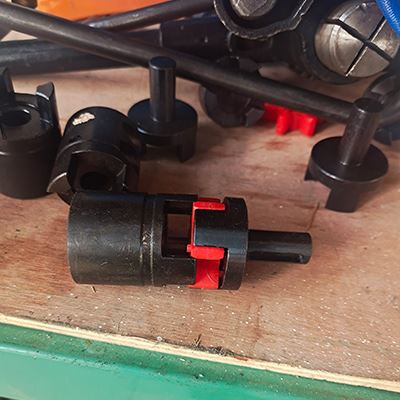

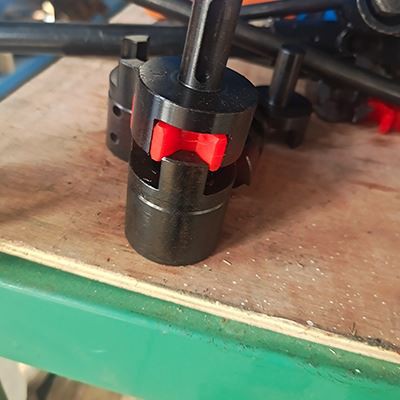

DIN Standard L Coupling

DIN Standard L Coupling

Product name:DIN Standard L Coupling
Product number:L-090
Product grouping:Coupling...

Send InquiryChat Now

Basic Information

Product name:DIN Standard L Coupling

Product number:L-090

Product grouping:Coupling

Product Properties

Tooth surface hardness: hardened tooth surface

Gear position: external gear

Manufacturing method: rolling gear

Tooth shape: spur gear

Material: C45

Type: circular gear

Transport Packaging:Export Package

Specification:ISO9001

Trademark:DONGHUA

Size:L-035 J-050 L-070-------L-150 L-190

Max Bore: 8 16 20 26 28 36 38 46 58

Trade information

FOB price:Can negotiate

Minimum order quantity:50pcs

Port:shanghai

Production:10000PCS/Month

Customs code:8483600090

PRODUCT DESCRIPITION

*Excellet high torque rigidity and good vibration absorbability

*No gyration tolerance

*Great displacemet for angular, parallel or axial deviation by calw fecxibility

*Same feature revolving with direction or negative deredction.

*Fixed bye screw or deywqy

*Aluminum material, cast iron adn powder metallurgy

* Coupling type

L-035 L-050 L-070 L-075 L-090 L-095 L-099 L-100 L-110 L-150 L-190

We can supply various specification for couplings, HRC coupling, NM MHcoupling, flexible coupling, Jaw coupling, FCL coupling, ROTEX Coupling, bowex coupling etc

Pls contact to us on free, if you need catalogue or have any questions.

TYPE

Allowable Wrench Torque (N.m)

Max (rpm)

Max Bore (mm)

Out Dia (mm)

Total Length (mm)

L1  (mm)

Weight  (kg)

L-035

0.15

6000

8

16.1

20.15

6.68

0.02

L-050

0.45

4500

16

27.6

42.55

15.60

0.14

L-070

0.9

3600

20

34.3

49.92

19.30

0.25

L-075

1.5

3600

26

44.6

52.88

20.60

0.45

L-090

2.4

3000

28

53.6

53.22

20.70

50.66

L-095

3

3000

28

53.6

62.36

25.20

0.78

L-099

6

3000

36

64.6

76.47

29.70

1.35

L-100

7.5

3000

36

64.6

86.47

34.70

1.53

L-110

15

2500

38

84.3

106.32

43.10

3.3

L-150

30

2500

46

95.3

112.95

44.60

4.48

L-190

45

2000

58

115

138.50

56.00

9.14
