product name：Casting Bevel Gear
Product number：Pitch: 6 10 12 14 16
Scope of application：Motor
Tooth surface hardness：hardened tooth surface
gear position：extemal gear
Manufacturing methods：cast gear
Tooth line shape：bevel wheel；
Material：Carbon Steel

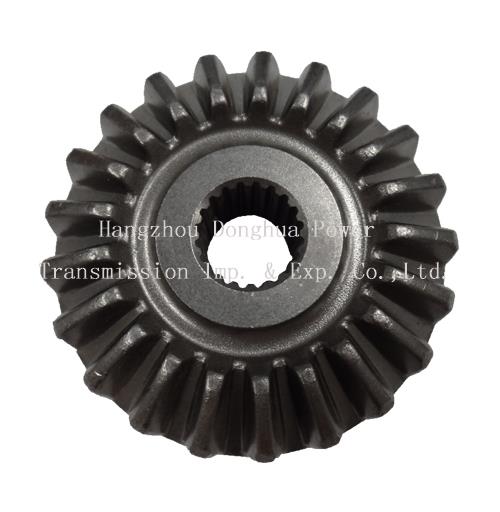

Casting Bevel Gear
Gear with straight teeth
Precision Forging
Mould from 0.5--16
20CrMnTi, 20Cr, 40Cr
Carburization
High quality lubrication
Casting Bevel Gear is used to transmit motion and power between two intersecting axes. In general machinery, the angle between the two axes of the bevel gear is equal to 90° (but not equal to 90°). Similar to cylindrical gears, bevel gears have an indexing cone, a tip cone, a root cone and a base cone. The cone has a big end and a small end, and the circle corresponding to the big end is called an index circle (its radius is r), a tip circle, a root circle, and a base circle. The motion of a pair of bevel gears is equivalent to a pair of pitch cones for pure rolling.
